terms:dip

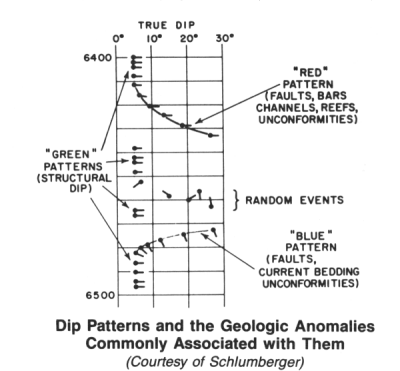

The angle that a structural surface (e.g., a bedding or fault plane) makes with the horizontal, measured perpendicular to the strike of the structure. Observe dip patterns on idealized log in illustration. Also see illustration of dip at strike.
